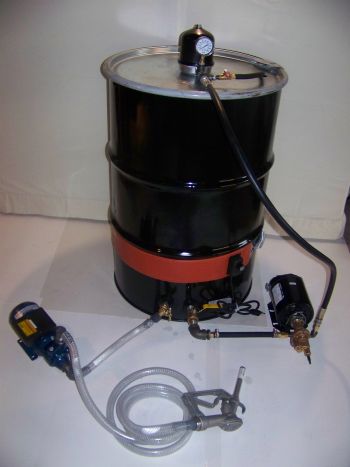

 | The PAB-DCU Centrifuge/Filtration Unit will clean your WVO/Biodiesel more effectively than any other system on the market! This unit has the ability to polish your WVO to less than .5 micron.
Begin by filtering your oil to remove the larger particles. The unit has the capability of removing water by way of the temperature in the drum and from the centrifigal force of the rotor in the centrifuge. Heat your oil to 150 -170º F with the 1200 watt Briskheat drum heater. There are no filters or filter bags to replace - simply clean out the rotor in the centrifuge when it is full. The 1/3 HP carbonator-mount gear pump delivers the hot WVO to the 1 GPM centrifuge at 85 PSI for peak performance. The excess flow is then diverted to the drum by way of the ball valve. The carbonator-mount pump and motor takes oil from the bottom of the barrel to ensure constant recirculation of oil through the centrifuge. When finished polishing the oil, use the clear water pump, hose, and nozzle to pump your oil to your storage tank or your vehicle.
Included are: 55 gallon banded drum with welded fittings, 60 GPH centrifuge, carbonator- mount gear pump, hydraulic hose and fittings, Briskheat 1200 watt drum heater, 100 PSI pressure gauge, 5 GPM transfer pump, pressure relief valve, 10' nylon reinforced hose, fuel nozzle, 2- 8' power cords, and all necessary fittings to assemble the system. .
Assembly instructions sent by way of e-mail. |
